Concealed Barrel Hinge

Concealed Barrel Hinge: Seamless Integration with Timeless Appeal

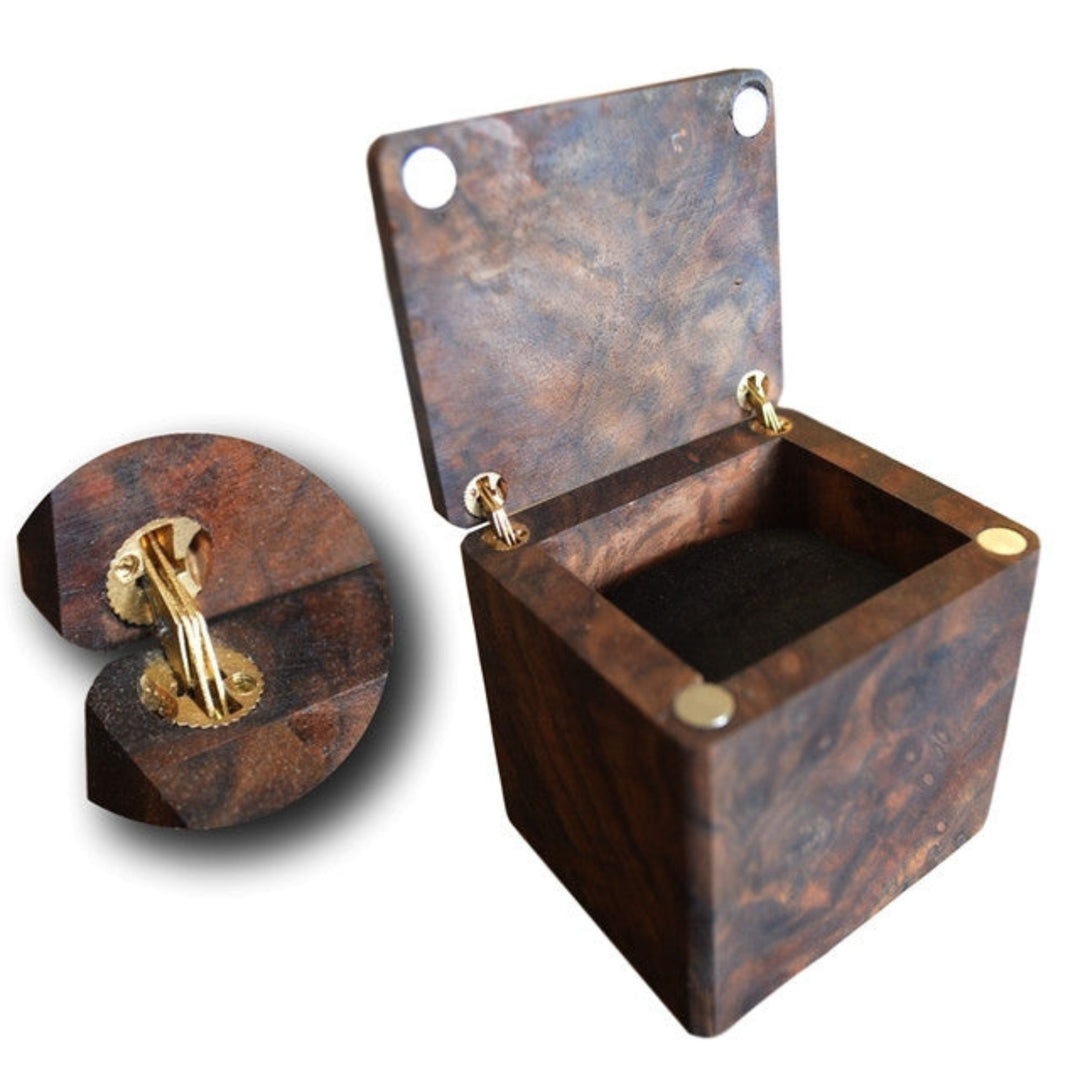

Discover the beauty of seamless integration with our Concealed Barrel Hinge. Made of brass, this hinge is designed to offer a hidden yet sturdy connection, making it perfect for projects where aesthetics are paramount. Whether you're working on cabinets, doors, or other furniture pieces, this hinge ensures a clean look without any visible hardware.

Available in four sizes, from X-Small to Large, it caters to a range of woodworking needs. The installation is straightforward: simply drill a hole, insert the hinge, and secure it with the set screw. The expanding wedge ensures a tight and secure fit.

Specifications:

• Material: Brass

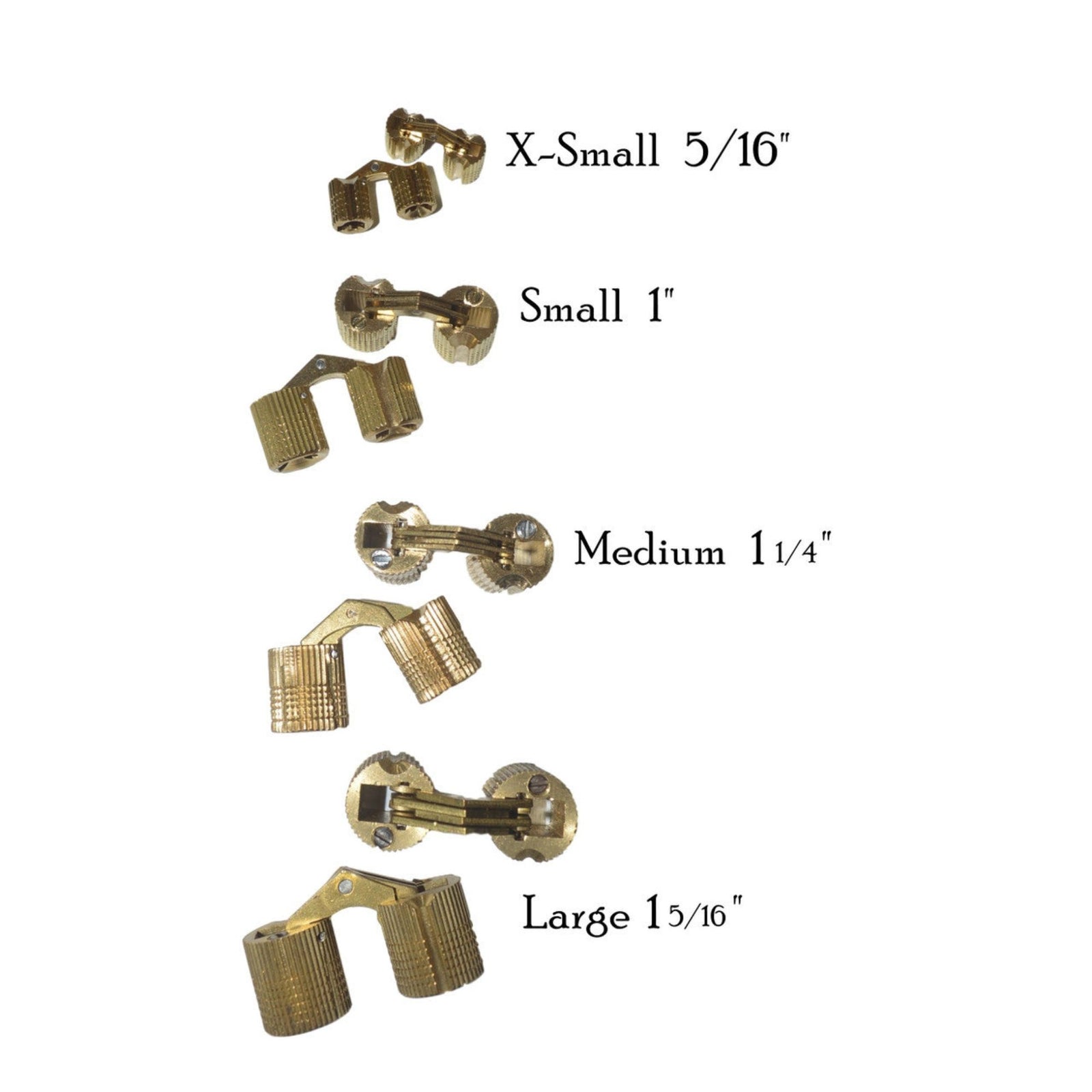

• Available Sizes: Extra-Small, Small, Medium, Large
• Mounting: Concealed, set screw for secure fit
• Dimensions (when closed):
• Extra Small:  5/16" long x 3/8" diameter
• Small:  1" long x 3/8" diameter
• Medium:  1-1/4" long x 9/16" diameter
• Large: 1-5/16" long x 5/8" diameter
• Uses:
• Extra Small: Very small, light duty
• Small: For use with 7/16" thick wood. Just drill hole and insert. Tightening the set screw expands wedge for secure fit.
• Medium:  For use with 3/4" thick wood. Just drill hole and insert. Tightening the set screw expands wedge for secure fit.
• Large:  For use with 7/8" thick wood. Just drill hole and insert. Tightening the set screw expands wedge for secure fit.
